Brand Name : huihao
Model Number : British Hose Clamp
Certification : ISO9001-2015
Place of Origin : China
MOQ : 2000pcs
Payment Terms : L/C, T/T
Supply Ability : 2000pcs per 15 days
Delivery Time : 8 work days
Packaging Details : 100pieces/bag,20bags/carton
name : British Hose Clamp
material : stainless steel 304/ galvanized steel
brand size : 9.7/11.7mm
usage : Pipe Clamp
clamping range : 8-14/277-307mm
finished : zinc plated
specification of British Hose Clamp Wth Tube Housing, Insulation Metal Clamping Band Hose Clips
clamp range mm | brand width mm | pcs/bag | pcs/carton | suggested installtorque |
8-14 | 9.7 | 100 | 2000 | 3.0Nm |
11-17 | 9.7 | 100 | 2000 | 3.0Nm |
13-20 | 9.7 | 100 | 2000 | 3.0Nm |
15-24 | 9.7 | 100 | 2000 | 3.0Nm |
18-28 | 9.7 | 100 | 2000 | 3.0Nm |
22-32 | 9.7 | 50 | 1000 | 3.0Nm |
26-38 | 9.7 | 50 | 500 | 3.0Nm |
32-44 | 9.7 | 50 | 500 | 3.0Nm |
38-50 | 9.7 | 50 | 500 | 3.0Nm |
44-56 | 9.7 | 25 | 500 | 3.0Nm |
50-65 | 9.7 | 25 | 250 | 3.0Nm |
58-75 | 9.7 | 25 | 250 | 3.0Nm |
68-85 | 9.7 | 10 | 250 | 3.0Nm |
77-95 | 9.7 | 10 | 250 | 3.0Nm |
15--24 | 11.7 | 50 | 500 | 4.8Nm |
19--28 | 11.7 | 50 | 500 | 4.8Nm |
22--32 | 11.7 | 50 | 500 | 4.8Nm |
26--38 | 11.7 | 50 | 500 | 4.8Nm |
32--44 | 11.7 | 50 | 500 | 5.2Nm |
38--50 | 11.7 | 50 | 500 | 5.2Nm |
44--56 | 11.7 | 25 | 500 | 5.2Nm |
50--65 | 11.7 | 25 | 500 | 5.2Nm |
58--75 | 11.7 | 25 | 200 | 5.2Nm |
68--85 | 11.7 | 25 | 200 | 5.2Nm |
77--95 | 11.7 | 10 | 200 | 5.2Nm |
87--112 | 11.7 | 10 | 200 | 5.2Nm |
104--138 | 11.7 | 10 | 100 | 5.2Nm |
130--165 | 11.7 | - | 100 | 5.2Nm |
150--180 | 11.7 | - | 100 | 5.2Nm |
175--205 | 11.7 | - | 100 | 5.2Nm |
200--231 | 11.7 | - | 50 | 5.2Nm |
226--256 | 11.7 | - | 50 | 5.2Nm |
251--282 | 11.7 | - | 50 | 5.2Nm |
277--307 | 11.7 | - | 50 | 5.2Nm |

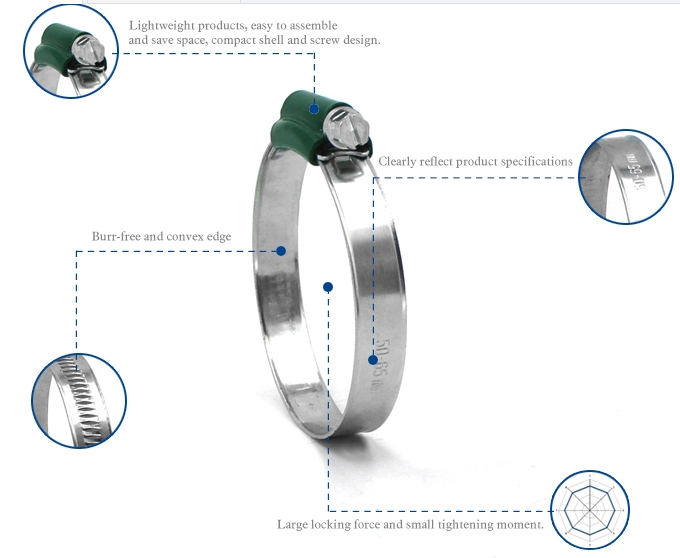

details of British Hose Clamp Wth Tube Housing, Insulation Metal Clamping Band Hose Clips
Surface treatment difference:
Galvanizing treatment: (blue white zinc, multicolored zinc, military green, brown, black, etc.); The corrosion resistance is 48-96 hours
Zinc aluminum coating: (Dacromet, Jiumei, Meili, etc.); The corrosion resistance is 120-1080 hours.
Metal coating: (Zn-Ni alloy, gold plating, silver plating, copper plating, etc.); The corrosion resistance is 240-720 hours.
British Hose Clamp Wth Tube Housing is widely used in various fields such as automobile oil circuits, engine pipelines, drainage pipelines,
building materials, hardware, etc.

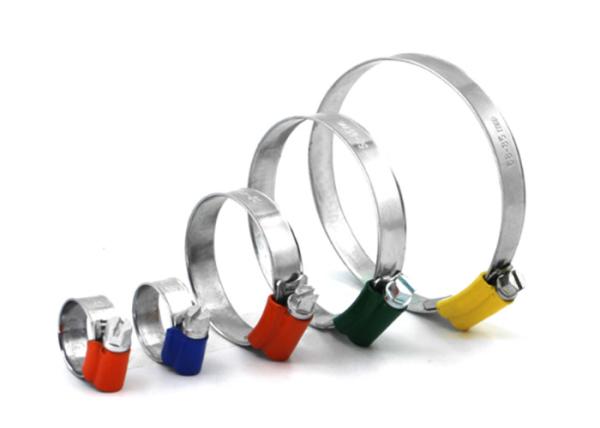

British Hose Clamp Wth Tube Housing , Insulation Metal Clamping Band Hose Clips Images |
