Brand Name : huihao
Model Number : architectural cable wire mesh
Certification : ISO
Place of Origin : China
MOQ : Negotiable
Payment Terms : L/C, T/T, Western Union,paypal
Supply Ability : 1000 square meter within 10 days
Delivery Time : 7 work days
Packaging Details : wooden box package
Material : stainless steel wire, copper wire and brass wire
rod pitch : 1.5mm, 1.6mm, 3.0mm, 3.5mm, 5.0mm, 6.0mm, 6.2mm, 8mm, 10mm, 14.5mm, etc.
rod material : 0.5mm, 1.2mm, 1.5mm, 2.0mm, 3.0mm, 4mm, etc
cable diameter : 0.45mm, 0.5mm, 0.75mm, 1.0mm, 1.7mm, 2.0mm, 2.5mm, 2.75mm, 3.0mm, etc.
Name : Architectural Cable Wire Mesh
Application : Sunshade Screen
Architectural Cable Wire Mesh , also called architectural mesh, is a kind of decorative metal meshes. The cable metal mesh is
combined with braided steel cables and steel rod. Commonly the warp wire is steel cables and the weft wire is steel rod. The
material of steel rod can be stainless steel wire, brass wire or copper wire, and other materials can also be customized.
The cable metal mesh has various styles and specs, we can customize it according to the customers' requirements.
Cable metal mesh with various types and beautiful surface is widely used in high-class buildings, elevators, luxury office buildings,
hotels, business hall and other architectures for indoor and outdoor decorations.
Architectural Cable Wire Mesh Specifications
design | open area | cable wire dia. | cable pitch | bar dia. | bar pitch | thickness |
1 | 40% | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 5.1 mm |
2 | 43% | 1x2.5 mm | 6 mm | 2 mm | 8 mm | 5.5 mm |
3 | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.5 mm |
4 | 37.20% | 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 1.3 mm |
5 | 71% | 3x1.6 mm | 80 mm | 2.5 mm | 10 mm | 5.7 mm |
6 | 65% | 3x2 mm | 80 mm | 3 mm | 10 mm | 7 mm |
7 | 65.90% | 3x2.75 mm | 110 mm | 4 mm | 14.5 mm | 10 mm |
8 | 67% | 3x3 mm | 110 mm | 4 mm | 14.2 mm | 10 mm |
9 | 44.30% | 4x0.75 mm | 26.4 mm | 1.5 mm | 3 mm | 3 mm |
10 | 62% | 4x1 mm | 36 mm | 2 mm | 6.6 mm | 4 mm |
11 | 40% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7mm |
12 | 42% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7 mm |
Architectural Cable Wire Mesh Applications
Cable metal mesh is more and more popular in interior and exterior decorations. Additional, it has lots of applications, such as:
Space divider.Wall decoration.Ceiling decoration.Window curtain.Handrail balustrade.
Elevator cab mesh.Security door.Facade cladding.Glass laminated wire.Sunshade screen.
Features of Architectural Wire Mesh
![]() |

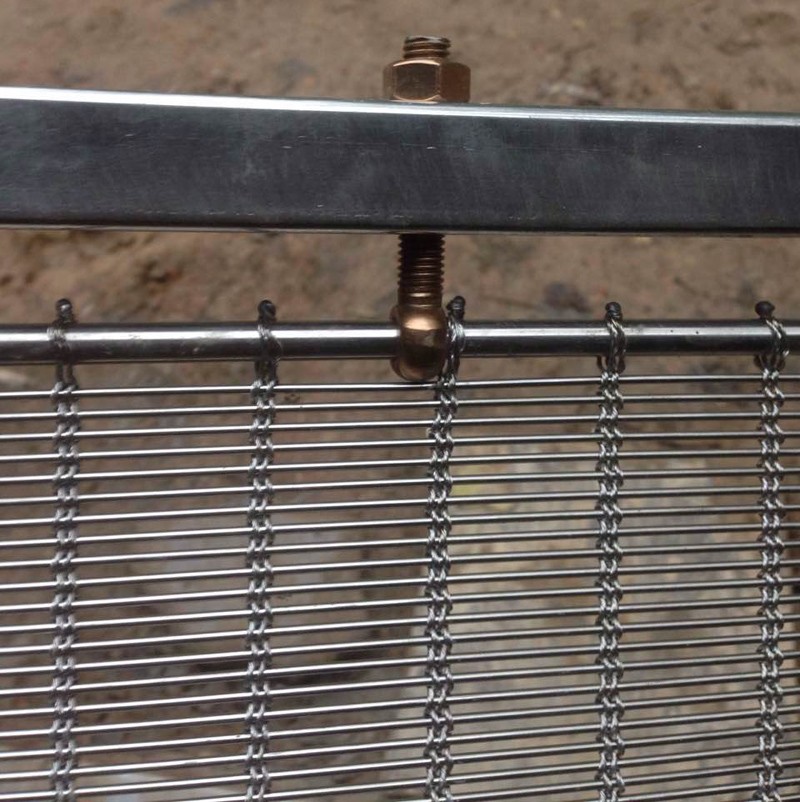

3mm Architectural Wire Mesh With Installation Accessories For Sunshade Screen Images |
