50mm L Plastic Expansion Rubber Plug With Screw Used For Toilet Installation
advantages of rubber plug with screw
High expansion coefficient, good weather resistance, impact resistance, no cracking
Huihao company has more than 100 kinds of products, more than 1,500 specifications, and 15 million safety stocks. Can meet more than 90% of customer needs, and can develop molds and custom non-standard products according to customer requirements. Products meet the green ROHS certification.

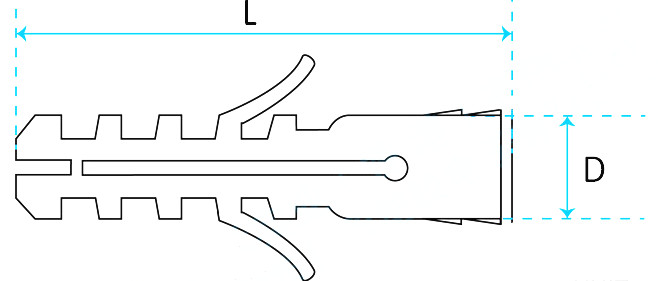

specification of plug with screw
 |
| D | L | DRILL DIA | HOLE DRILL | SCREW DIA | MATERIAL |
| 10 | 50 | 10 | 60 | 5.5-7 | PA |
| 12 | 60 | 12 | 70 | 6.5-9 | PA |
| 14 | 75 | 14 | 90 | 8.5-11 | PA |
 |
| ds | max | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
| | min | 3.52 | 4.52 | 5.52 | 6.42 | 7.42 | 9.42 | 11.3 | 15.3 | 19.3 |
| k | max | 3.1 | 3.88 | 4.38 | 5.38 | 5.88 | 7.45 | 8.45 | 10.45 | 13.9 |
| | min | 2.5 | 3.13 | 3.63 | 4.63 | 5.13 | 6.55 | 7.55 | 9.55 | 12.1 |
| s | max | 7 | 8 | 10 | 12 | 13 | 17 | 19 | 24 | 30 |
| | min | 6.64 | 7.64 | 9.64 | 11.57 | 12.57 | 16.57 | 18.48 | 23.16 | 19.16 |
1. Certification: ISO, ROHS, SGS
2. Available Standard: DIN, ANSI, ASTM, JIS, BSW
3. Strength: Grade 4.8,Grade 8.8,Grade10.9,Grade12.9 A2-70, A4-70, A4-80
4. Finishing: Yellow, blue, white zinc plated, Galvanized,HDG,Chromate,Dacromet
5. Available material: Carbon steel, stainelss steel SS304, A2 ,Stainless steel SS314,A4.

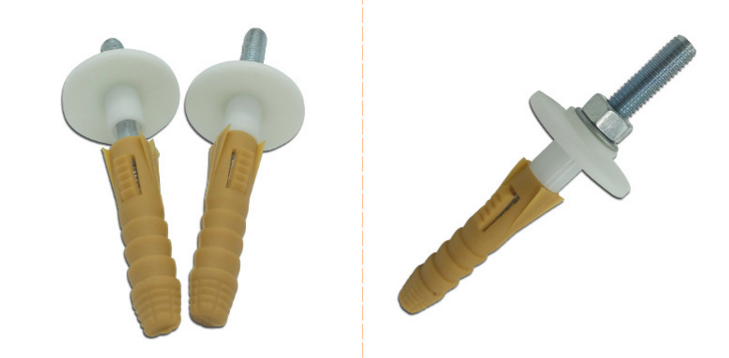

images of expansion plastic plug with screw
application of expansion plug with screw

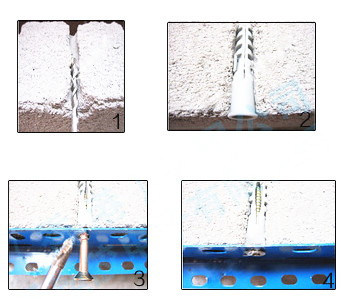

| drawing | guide of expansion plug with screw |
 | - Now drilling holes in the wall, the depth and diameter of the hole need to correspond to the size of the engineering product.
- Push the anchor bolt into the wall with a rubber hammer
- Align the anchor hole with the anchor
- Insert the screw, turn it clockwise, and flush with the anchor.
|
Expansion Rubber Plug With Screw is used for Concrete, natural stone, solid brick, hollow brick, perforated brick, lime sand brick
huihao services
- Personal data analysis of customer requirements, fully understand customer needs
- The special person follows each order and provides various customs clearance documents required by the customer.
- Powerful support, efficient, convenient and fast
- Adequate supply of supplies, accept small orders and provide samples
- The best quality, ISO9001-2008 quality management system certification
- Advanced production equipment, efficient productivity
