Stamped Parts SUS316 Lacing Hook Washer Is Fixing Freeze Protection Covers
Huihao hardware Company also supply pattern design services, so please tell me your idears, we help you became it finished products.
Specification of Stamped Parts SUS316 Lacing Hook Washer Is Fixing Freeze Protection Covers
| material | width of lacing hook washer | hook size | thickness | hole size (double) |
| stainless steel304/316 | 22mm, 25mm | 5mmx11mm | 1mm | 5mm |
1.we accept OEM orders, and supply pattern design, surface treatment and project advices
2.good hold power, go through with non-return

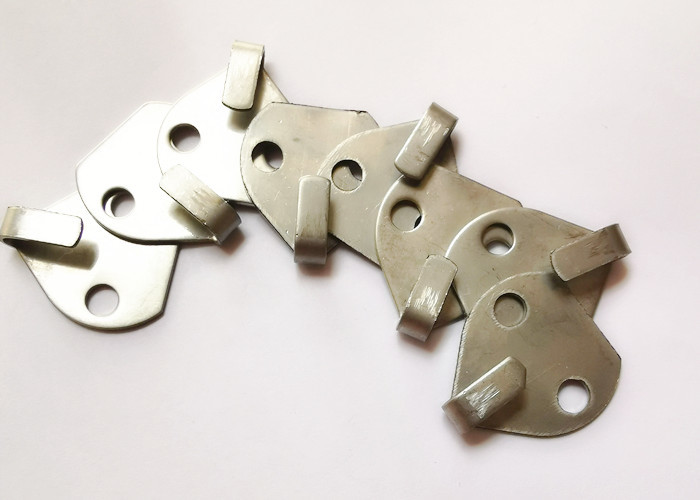

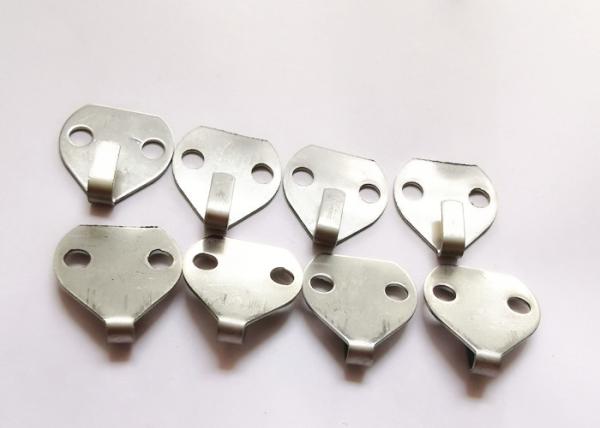

images of Stamped Parts SUS316 Lacing Hook Washer Is Fixing Freeze Protection Covers
Related metal insulation parts for Stamped Parts SUS316 Lacing Hook Washer Is Fixing Freeze Protection Covers
suitable installation parts include: lacing anchor pins,lacing washer, lacing wire and lacing rings (o type and D types)
our Lacing Anchors are for attaching and securing removable and reusable insulation blankets. For best results, the nail
of the Lacing Anchor should be pushed through the front side of the blanket so the Lacing Anchor head is snug against
the pad with the nail extending out the back side.
We offer our Lacing Anchors in the following dimensions.
- 0.040” 304SS plates with a machine stamped hook
- 12 or 14-gauge annealed wire nail impaled in the center of the plate nail
- Nail lengths of 1 1⁄2”, 2 1⁄2”, 4 1⁄2” and 6 1⁄2” (special lengths are available on request)
| Parts | lacing anchor | lacing washer | lacing wire | lacing O ring | lacing D ring |
| Material | SS/MS | SS.MS | SS.MS | SS | SS |
| standard size | 63.5MM | 25MM | 2MM | 30MM | 20MMX30MM |
| lacing anchor | lacing wire |
 |  |
| lacing washer | lacing ring |
 |  |
how to Stamped Parts SUS316 Lacing Hook Washer Is Fixing Freeze Protection Covers
Mat Insulation Metal Lacing Hook Washers / Lacing washer system are used for securing and tying removable insulation
blankets, work with Lacing washers to fasten the insulation. Install the lacing hook with wire, secure with lacing washer,
use lacing wire to fasten the insulation through the lacing hooks.
applications of Stamped Parts SUS316 Lacing Hook Washer Is Fixing Freeze Protection Covers
| stainless steel material lacing Hook washers are wildy used for fixing: |
- exhaust insulation blankets
- fabric expansion joints
- temptec exhaust blankets
- mat insulation
- thermal insulation covers
- cooling insulation covers
- heat insulatiuon covers
| - freeze protection cover
- removable insulation covers
- tank insulation cover
- flanhe leak insulation covers
- offshore production cover
- heat-shield insulation blankets
- removable insulation jacket
|
