Insulation Fastener Capacitor Discharge CD Stud Welding Pins With Copper Plated
Quick details of Insulation Fastener Capacitor Discharge CD Stud Welding Pins
Material: Mild steel
Pin diameter :2.7mm, 3.0mm in common
Pins length ;25mm-250mm , and the length could made according to the customer's requirement.
Washer diameter:30mm or 38mm dome cap washer in common.
Surface treatment;Copper plated or zinc coating
| WELD NAILS MATERIAL | STANDARD OF MATERIAL |
Low Carbon Mild Steel 4.8 (weldable)
Stainless Steel A2-50 (weldable)
Aluminium Alloy AlMg3
Pure Aluminium
Lead Free Brass 4.8 (weldable) | EN 20898-1
EN ISO 3506-3
EN 573-3
EN 573-3
ISO 426 –1 / ISO 1638 |

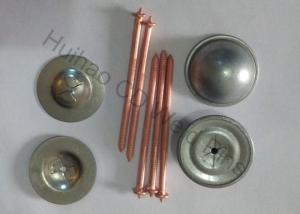

Pic of Insulation Fastener Capacitor Discharge CD Stud Welding Pins

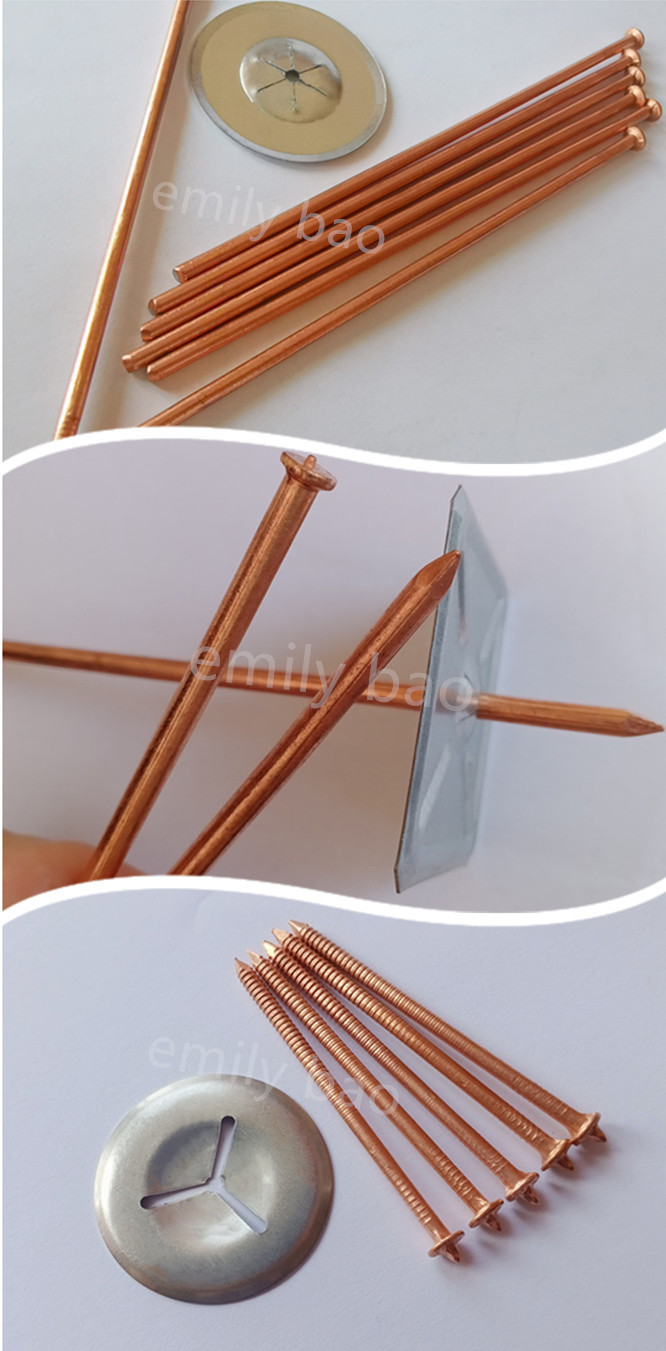

Copper plated powerbase capacitor discharge weld insulation pin

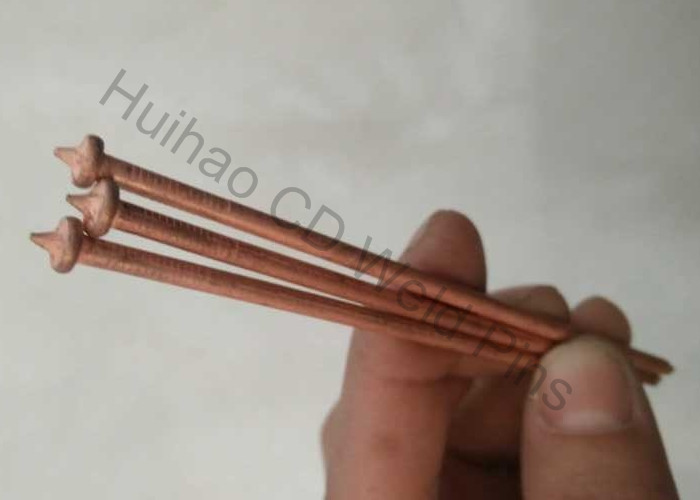

Powerbase weld pins with copper plating
Material :steel ,copper coated steel
Nail length:45mm ,60mm,65mm,70mm,75mm
100mm ,120mm,130mm
Zinc coated flatbase capacitor discharge weld insulation pin
Flatbase weld pins with zinc coated
Material :steel ,zinc coated steel
Nail length:45mm ,60mm,65mm,70mm,75mm
100mm ,120mm,130mm
Specification of Insulation Fastener Capacitor Discharge CD Stud Welding Pins
| Specification of Insulation fastener capacitor discharge CD stud welding pins |
| Weld pin diameter | Weld pin length | Weld type | surfacetreatment |
| 2.7mm | 30-220mm | Powerbase/flatbase | Plated and zinc coated are mild material , polish for ss nofinished for aluminum 1100 |
| 3.0mm | 30-220mm | Powerbase/flatbase |
| 3.4mm | 30-220mm | Powerbase/flatbase |
Install of Galvanized Capacitor Discharge (CD)stud weld insulation pin
Packing of capacitor discharge weld insulation pin
Capacitor Discharge Weld Pins1.500pcs per bags, 10 bags per carton. if the length too long, we will be
according your requirements to pack.
| Package of the copper coating weld pins |
| term | length | width | height | loading |
| carton size | 28cm | 20cm | 25cm | 3000pcs |
| pallet | 1120mm | 1000mm | 1100mm | 100 cartons |
| 20ft container | 18 pallets | 40ft container | 36 pallets |
