90mm Length Stud Welding Pins Ship Deck Aluminum Alloy Flange Copper Coated

Brand Name : HUIHAOCUSTOM

Model Number : hh-as-90

Certification : ISO9001-2015

Place of Origin : china

MOQ : 10000 pcs

Payment Terms : L/C, T/T

Supply Ability : 30000pcs per day

Delivery Time : 8 work days

Packaging Details : 500 pcs per pp bag, 10 bags per carton for aluminum alloy flange weld pins

Name : aluminum alloy flange weld pins

flange material : al-5054

pin material : copper coated steel

pin size : 3mm x90mm

install parts : self locking washer, speed clips

application : fixing insulation material on ship deck

factory : anping huihao

sample : free for size in stock

Contact Now

90mm Length Ship Deck Aluminum Alloy Flange Weld Pin With Copper Coated

Specification details of Ship Deck Aluminum Alloy Flange Weld Pin

the below size is most popular in market. other sizes can be make too.

Part No. flange material pin material pin diameter pin length
HH-AS-55 AL-5054 steel / stainless steel 2.7,3,4,5mm 55mm
HH-AS-70 AL-5054 steel / stainless steel 2.7,3,4,5mm 70mm
HH-AS-90 AL-5054 steel / stainless steel 2.7,3,4,5mm 90mm
HH-AS-100 AL-5054 steel / stainless steel 2.7,3,4,5mm 100mm
HH-AS-110 AL-5054 steel / stainless steel 2.7,3,4,5mm 110mm
HH-AS-120 AL-5054 steel / stainless steel 2.7,3,4,5mm 120mm
HH-AS-140 AL-5054 steel / stainless steel 2.7,3,4,5mm 140mm
HH-AS-160 AL-5054 steel / stainless steel 2.7,3,4,5mm 160mm
HH-AS-180 AL-5054 steel / stainless steel 2.7,3,4,5mm 180mm

Features of Ship Deck Aluminum Alloy Flange Weld Pin

BETTER PLATING
aluminum alloy flange weld pin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated.
REDUCED DOWN TIME
Consistent point quality reduces frequency of machine adjustments.
STRONGER WELDS
Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE
Plating exceeds current SMACNA standards for corrosion resistance.
TEMPERATURE RANGE
aluminum alloy flange Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
VIBRATIONS
aluminum alloy flange Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

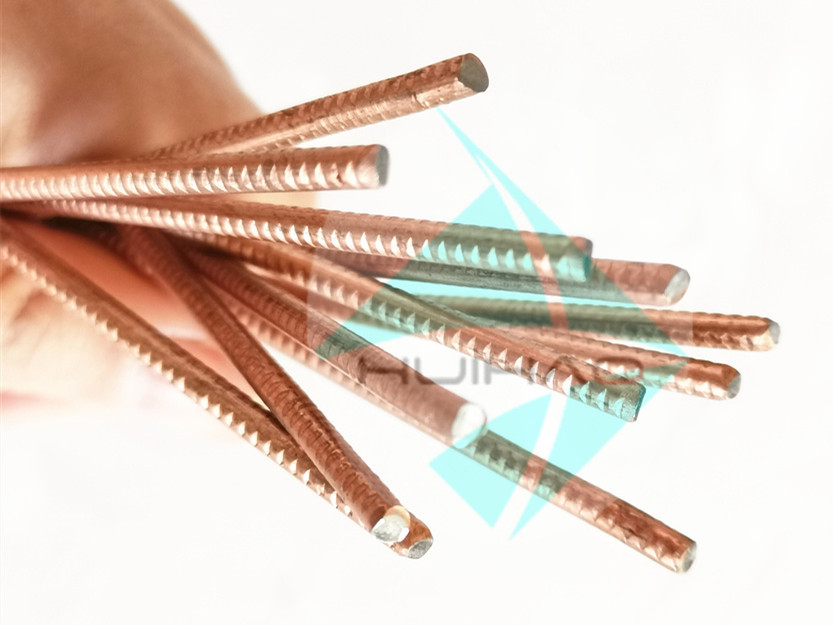

image details of Ship Deck Aluminum Alloy Flange Weld Pin

90mm Length Stud Welding Pins Ship Deck Aluminum Alloy Flange Copper Coated

90mm Length Stud Welding Pins Ship Deck Aluminum Alloy Flange Copper Coated 90mm Length Stud Welding Pins Ship Deck Aluminum Alloy Flange Copper Coated

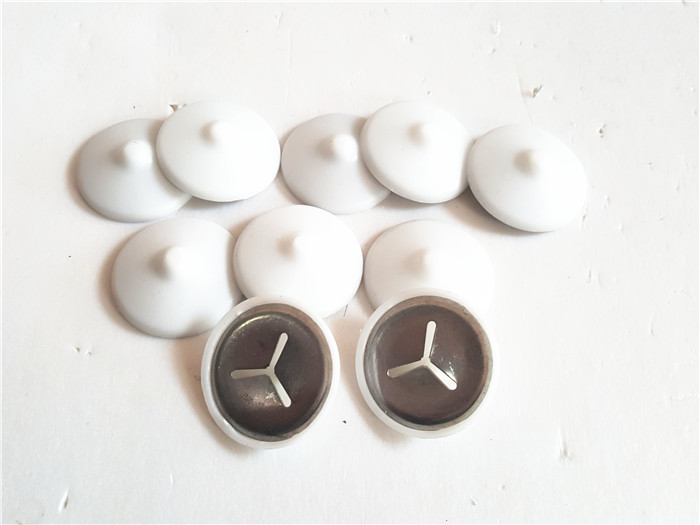

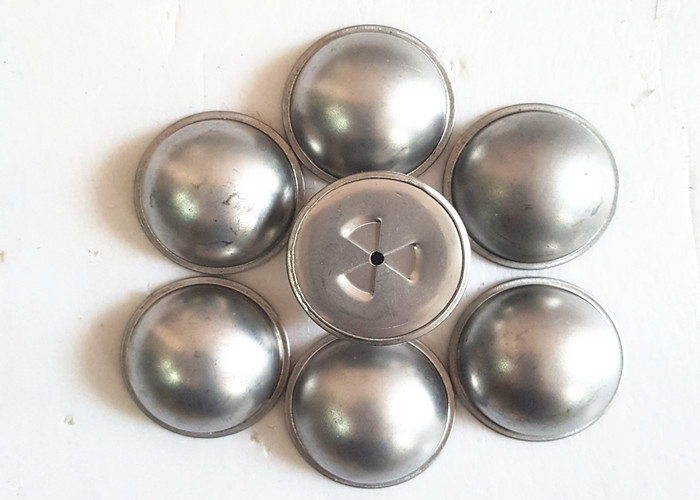

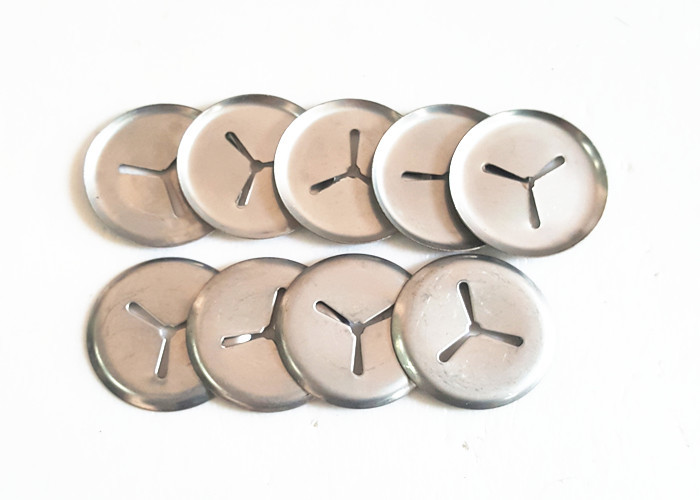

install washer for Ship Deck Aluminum Alloy Flange Weld Pin

38mm speed clips 40mm plastic cover speed cap 30mm self locking dome caps
90mm Length Stud Welding Pins Ship Deck Aluminum Alloy Flange Copper Coated 90mm Length Stud Welding Pins Ship Deck Aluminum Alloy Flange Copper Coated 90mm Length Stud Welding Pins Ship Deck Aluminum Alloy Flange Copper Coated

Company information

package service: Carton, Fumigation-Free Wooden Box, Fumigation-Free Tray, Warning Tape, Color Label, Custom Logo
delivery service:by sea, by air and door to door service
stock service: we have common size of Aluminum flange weld pins with Mechanized packing product in stock.
sample services: supply free sample for Aluminum flange weld pins special size of Mechanized packing , need customer paid the mould cost.
quality service: iso 9001-2008, material test cerfication, factort test report and third party test report from SGS and BV.

We are willing to rush orders and offer you competitive prices for our products and services. You won't regret choosing us as your supplier for Aluminum Base weld pins, and any other supplies you need
