Stainless Steel Slim Lacing Anchors Used As Expansion Joints
Description of the stainless steel slim lacing anchors
1. it's a fabricated metal anchor consisting of a pin and tabbed or hooked washer.
2. stainless steel is a popular material while this type lacing anchors is also made in mild steel.
3. stamped "no ab" to denote 'no asbestos'.

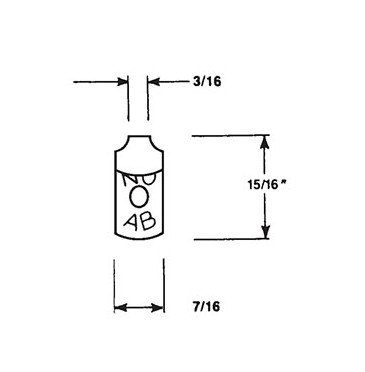

4. the tabbed head is about 1" across, and 7/16" wide.
5. The nail can be 12 gauge or 14 gauge in pin diameter.
6. 2-1/2" & 4-1/2" are standard pin length
7. Typical application is for the fabrication of lacing blankets or removable covers.
8. This type anchor is somewhat more economical than the standard lacing anchor and also
serves to eliminate weight in the overall removable cover or blanket.
 |  |
| | Nail Diameter | Nail Length | Head Wide | Head Length | | 2.0mm | 63.5mm | 11mm | 25mm | | 2.0mm | 114mm | 11mm | 25mm | | 2.7mm | 63.5mm | 11mm | 25mm | | 2.7mm | 114mm | 11mm | 25mm | |
How To Install The Stainless Steel Lacing Anchors
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
Application Of The Stainless Steel Slim Lacing Anchors
| stainless steel material lacing anchors are wildy used for fixing: |
-
exhaust insulation blankets -
fabric expansion joints -
exhaust blankets -
mat insulation -
thermal insulation covers -
cooling insulation covers -
heat insulatiuon covers | -
freeze protection cover -
removable insulation covers -
tank insulation cover -
flanhe leak insulation covers -
offshore production cover -
heat-shield insulation blankets -
removable insulation jacket -
|
 |
Package Of The Slim Stainless Steel Lacing Anchors
250pcs/500pcs/1000pcs per carton according to the insulation pin size,
48 cartons per pallet.
FAQ Of Huihao Hardware Mesh Product Limited.
Huihao Hardware Mesh Product Limited manufactured the following listed insulation pins and
washers with good quality and price, if you have interest purchasing from China, our company
definitely is a good choice for you.
| Insulation Pins | Insulation Washers And Accessories |
| Perforated base insulation hangers | Self locking washers |
| Self stick insulation pins | Dome cap washers |
| Lacing anchors | Insulation clips |
| CD weld pins | Plastic insulation anchors |
| BI metallic pins | Insulation discs |
| Insulation fixing anchors | Stainless steel O rings |
| J hooks | Stainless steel D rings |
| Impaling clips | |
| Solar panel clips | |
