Galvanized Steel Peel & Press Insulation Hangers 50x50x2.7mm On Duct Or Wall Surface

Name: Galvanized Steel Peel amp Press Insulation Hangers 50x50x27mm On Duct Or Wall Surface
Brand: HUIHAO
Price: 1 USD

China Galvanized Steel Peel & Press Insulation Hangers 50x50x2.7mm On Duct Or Wall Surface wholesale

Brand Name : HUIHAO

Model Number : Peel & Press Insulation Hangers

Certification : ISO9001-2015

Place of Origin : China

MOQ : 10000 pcs

Payment Terms : L/C, T/T,

Supply Ability : 10000 pcs oer hour

Delivery Time : 10 work days

Packaging Details : 500pcs per carton, 48 cartons per pallet,

Name : Peel Press Insulation Hangers

Brand : Huihao Custom

Material : Galvanized steel or stainless steel

Base Size : 50x50mm

Product Customization : Support

Pin Diameter : 2.7mm as standard

Samples : Support

Pin Length : 38mm-230mm in standard

Contact Now

Galvanized Steel Peel & Press Insulation Hangers 50x50x2.7mm On Duct Or Wall Surface

Specifications Of The Peel & Press Insulation Hangers:

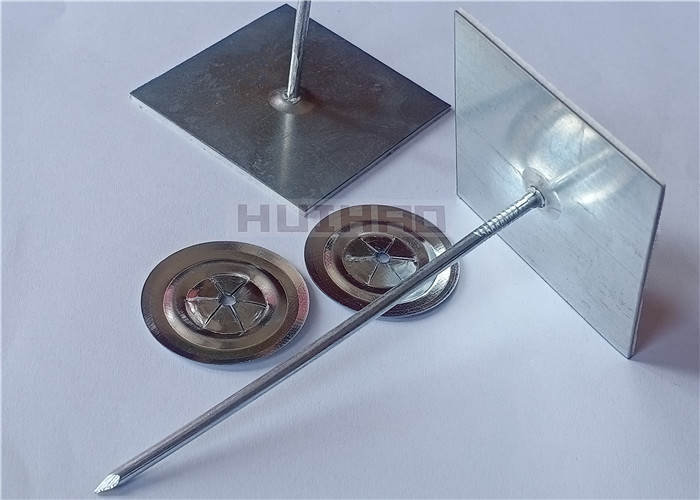

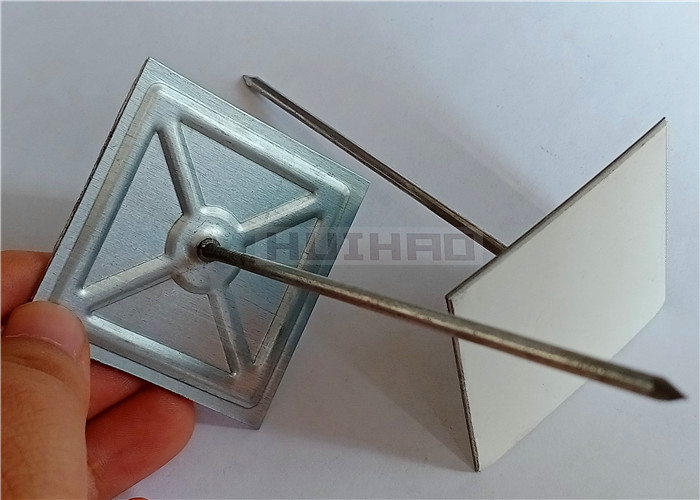

Peel & Press Insulation Hangers has a fabricated 2" x 2" metal base with self stick adhesive

on it and a pin. Peel the release paper from the metal base and firmly press the base to the

duct or wall surface. Once the insulation material is pierced onto the pins, a self locking washer

or a dome cap washer is needed to hold the insulation material in place.

The following are some popular sizes in the market, special size also could be customized.
Pin diameter	Base plate size	Insulatiion pin length
12ga, 3mm, 10ga	2 " square w / tape	1 "
12ga, 3mm, 10ga	2 " square w / tape	1 - 5 / 8 "
12ga, 3mm, 10ga	2 " square w / tape	2 "
12ga, 3mm, 10ga	2 " square w / tape	2 - 1 / 2"
12ga, 3mm, 10ga	2 " square w / tape	3 - 1 / 2"
12ga, 3mm, 10ga	2 " square w / tape	4 - 1 / 2"
12ga, 3mm, 10ga	2 " square w / tape	5 - 1 / 2"
12ga, 3mm, 10ga	2 " square w / tape	6 - 1 / 2"
12ga, 3mm, 10ga	2 " square w / tape	8 "
Advantages Of The Peel & Press Insulation Hangers: 1. The pins are riveted on the base of the insulation hangers, it's very strong. 2. The self adhesive tape on the base botom of the insulation hangers is very sticky. 3. The self locking washers are very hard, it could lock the insulation hangers very firmly.

Self Locking Washers For The Peel & Press Insulation Hangers:

Self Locking Washers Used To Fasten Peel & Press Insulation Hangers
type	size	material	center hole
round	25mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	30mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	32mmx32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	29mmx31mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	38mmx38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	50mmx50mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	65mmx65mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	30mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	40mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	50mm	galvanized steel, stainless steel, aluminum	2mm-5mm

Technical Data Of The Peel & Press Insulation Hangers:

Foam Density: 182 kg/m3
Liner Release Value: 10N/m
Peel Adhesion(23℃): 20 N/25mm
Application Temperature: +10℃ - Advisory
Static Shear: >1000 Hrs(PSTC)
Service Temperature(Minimum): -35℃
Service Temperature(Maximum): +90℃
Tensile Strength: (L)113 N/m2 (CNS10487)(C)85N/m2
Elongation: (L)170% (CNS 10487) (C) 150%
Shelf Life: 2years (20℃ 65%RH)

Application Of The Peel & Press Insulation Hangers:

1. Pins are very sharp and easy go through any insulation.
2. Pins are soft and easy to be bent over
3. The tape has a good stickness, every pin could load 1.5kg
4. The tape can work at 5℃ - 80℃

5. Usage Of The Peel & Press Insulation Hangers:

> Peel & press insulation hangers can only be stuck on clean, dry and smooth surface.

> Cleaning the surface is recommended, remove any duct, loose paint, oil etc.
> Peel off the backing paper.
> Place the peel & press insulation hangers in the required position.

> Press the base against the cleaning surface.

> Impale the insulation over the point of the peel & press insulation hangers.

> Secure the insulation with the self locking washers

> Bend or remove excess pins

Galvanized Steel Peel & Press Insulation Hangers 50x50x2.7mm On Duct Or Wall Surface

Huihao Hardware Mesh Product Limited.

1. We choose the best quality materials for making insulation fasteners
2. We do copper plating, zinc coated and phosphating pretreatment for the raw material
3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement.
4. We use the automatic riveting machine to install .
5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea.
6. Short delivery time because of our reasonable production flow management.
