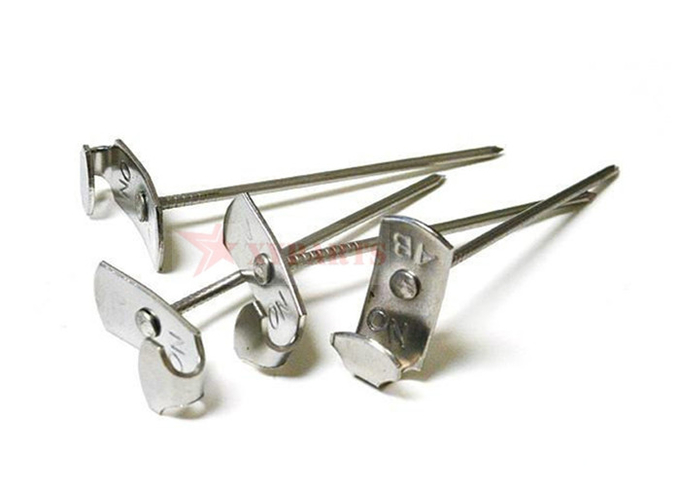

Slim Style Stainless Steel Lacing Anchors To Secure Insulation Blanket
Quick Details Of The Slim Style Lacing Anchors:
1. it's a fabricated metal anchor consisting of a pin and tabbed or hooked washer.
2. stainless steel is a popular material while this type lacing anchors is also made in mild steel.
3. stamped "no ab" to denote 'no asbestos'.
4. the tabbed head is about 1" across, and 7/16" wide.
5. The nail can be 12 gauge or 14 gauge in pin diameter.
6. 2-1/2" & 4-1/2" are standard pin length
7. Typical application is for the fabrication of lacing blankets or removable covers.
8. This type anchor is somewhat more economical than the standard lacing anchor and also
serves to eliminate weight in the overall removable cover or blanket.
Common Size Of The Slim Style Stainless Steel Lacing Anchors:
| Nail Diameter | Nail Length | Head Wide | Head Length |
| 2.0mm | 63.5mm | 11mm | 25mm |
| 2.0mm | 114mm | 11mm | 25mm |
| 2.7mm | 63.5mm | 11mm | 25mm |
| 2.7mm | 114mm | 11mm | 25mm |
-
Wide choice of fasteners for removable insulation blanket
-
Provide strong, durable fixings even in elevated temperature applications
-
Available in galvanized steel and stainless steel
-
Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
-
Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")
Application Of The Stainless Steel Lacing Anchors:
1. Prepare insulation blanket
2. Press lacing anchor through blanket
3. Secure lacing anchor with self locking washer and bend the spindle
4. Apply insulation blanket
5. Secure blanket by lacing through hooks with lacing wire
Lacing Anchors Have Different Types For Different Country:
| 1) US standard
The head diameter is 1 inch, the pin diameter is 10Ga, the length we have 1/2inch, 3/4 inch, 7/8 inch, 1 inch, 1-1/8inch, 1-1/2 inch 2 inch
| 2) EU standard
The head diameter is 30mm, the pin diameter is 2.7mm, there are many different length for EU market, the length we manufactured-22mm, 27mm, 28mm, 32mm 42mm, 48mm 58mm 60mm 100mm
| 3) Australia standard
People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin. The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm.
Lacing anchors marked NO AB to notify the blanket is asbestos free
Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
Pins length : 63 mm (2 1/2") and 114 mm (4 1/2") |
Package Of Stainless Steel Insulation Lacing Anchors :
| Product | Size(mm) | Quantity | Weight |
| Lacing Anchors | 12Gauge*2.5" | 1000Pcs | 8.6kgs |
| Lacing Anchors | 12Gauge*4.5" | 1000Pcs | 9.9kgs |
| Lacing Anchors | 14Gauge*2.5" | 1000Pcs | 10kgs |
| Lacing Anchors | 14Gauge*4.5" | 1000Pcs | 12.3kgs |
 |
FAQ Of Huihao Hardware Mesh Product Limited:
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported.
4. Can you accept small orders?
Yes, for common material and size, we accept small orders.
5. How do you control and ensure product quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
6. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
