1-1/2 Inch Carbon Steel Cupped Head Insulation Pins With Welding Machine

Brand Name : HUIHAO

Model Number : Cupped Head Insulation Pins

Certification : ISO 9001

Place of Origin : HEBEI

MOQ : 5000PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100.000PCS per week

Delivery Time : within 15 days after confirm the order

Packaging Details : 1.900pcs per catton 2.then on pallet 3.to be request

Product name : Cupped Head Insulation Pins

Material : carbon steel ,stainless steel ,copper

Head size : 30mm ,25mm

Pin diameter : 1.8mm,2.0mm,2.7mm,3.0mm,3.4mm

Surface treatment : copper plated or galvanized

Package : carton or pail

Service : door to door service

Sample : in stock

Contact Now

1-1/2 Inch Carbon Steel Cupped Head Insulation Pins With Welding Machine

Quick details of Cupped Head Insulation Pins

Product name :Cupped head insulation pins
Material:galvanized steel
Pin diameter:2.7mm
Pin length :1"(25mm),1-1/2"(38mm), 2"(50mm),70mm,100mm,110mm ect
Head size:30mm ,25mm

Annealing: all steel pins are fully annealed unless otherwise specified.

Washer: Low carbon steel & zinc plating.
Cupped Head Insulation Pins simplify the permanent installation of "Duct Liner" or other insulation materials
to duct work or to other heating, ventilating or air conditioning sheet metal configurations and housings.
A fabricated part made up of a weld pin and a staked on retaining washer. Variations of material are available.
This product is usually applied with a capacitor discharge stud welder. Used for securing insulation. Also used
as a hook-less lacing anchor to secure insulation inside fabricated blankets.

Specification of Cupped Head Insulation Pins

base size base material pin diameter pin length pin material finished
20MM mild steel, stainless steel, copper 2.7MM,3MM, 3.4MM 10MM, 25MM, 38MM mild steel, stainless steel, copper zinc/ copper plating
25mm mild steel, stainless steel, copper 3mm 10mm-65mm mild steel, stainless steel, copper zinc/ copper plating
30mm mild steel, stainless steel, copper 3.4mm 10mm-65mm mild steel, stainless steel, copper zinc/ copper plating
custom custom support custom support custom

Pic of Cupped Head Insulation Pins

1-1/2 Inch Carbon Steel Cupped Head Insulation Pins With Welding Machine

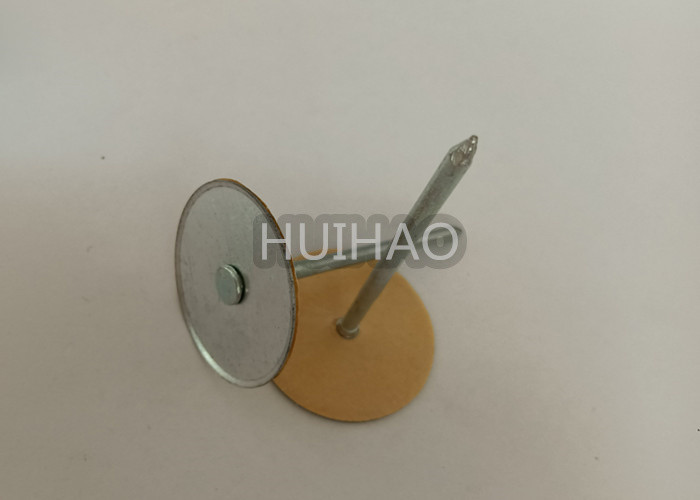

Head diameter:30mm
Pin diameter:2.7mm
Pin length:1"
with paper washer

1-1/2 Inch Carbon Steel Cupped Head Insulation Pins With Welding Machine

Head diameter:30mm
Pin diameter:2.7mm
Pin length:1"
without paper washer

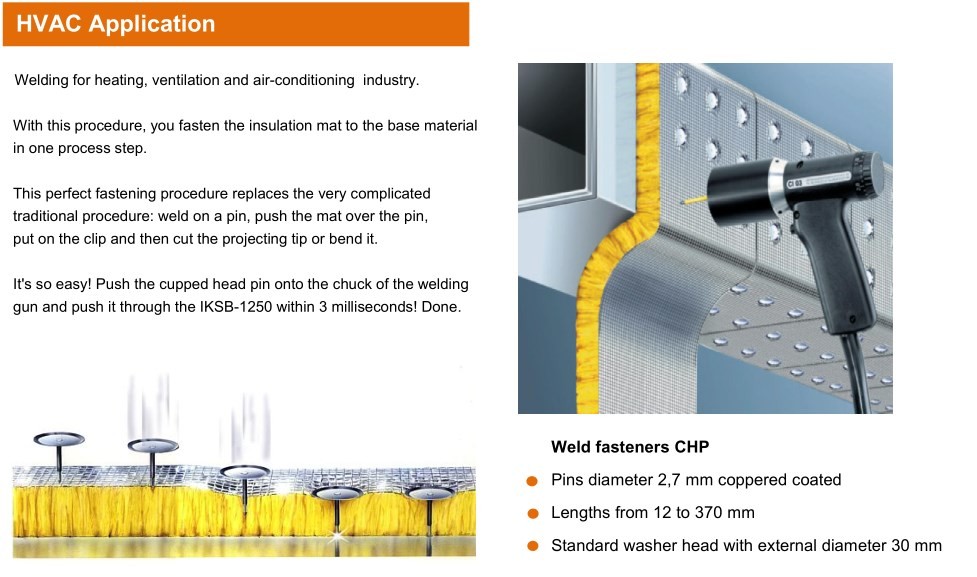

Install of Cupped Head Insulation Pins


Recommended assembly method:
1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength
of adherence is achieved after 24 hours
1-1/2 Inch Carbon Steel Cupped Head Insulation Pins With Welding Machine1-1/2 Inch Carbon Steel Cupped Head Insulation Pins With Welding Machine
1-1/2 Inch Carbon Steel Cupped Head Insulation Pins With Welding Machine

Packing of Cupped Head Insulation Pins

Product Quantity Box size Weight
12Gauge 3/8” cup head weld pins 1000Pcs 26×26×8CM 2.85KG
12Gauge 7/8” cup head weld pins 1000Pcs 26×26×11CM 3.5KG
12Gauge 1” cup head weld pins 1000Pcs 26×26×11CM 3.7KG
12Gauge 1-1/8” cup head weld pins 1000Pcs 26×26×13CM 4.2KG
12Gauge 1-7/8” cup head weld pins 1000Pcs 26×26×18CM 4.85KG
12Gauge 2” cup head weld pins 1000Pcs 26×26×18CM 4.95KG
12Gauge 3” cup head weld pins 1000Pcs 26×26×18CM 7.05KG
12Gauge 4” cup head weld pins 1000Pcs 26×26×32CM 7.6KG

1-1/2 Inch Carbon Steel Cupped Head Insulation Pins With Welding Machine

HUIHAO Company introuduce:


HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.

Special design can contact us make new mold as your pic or drawing pic !
